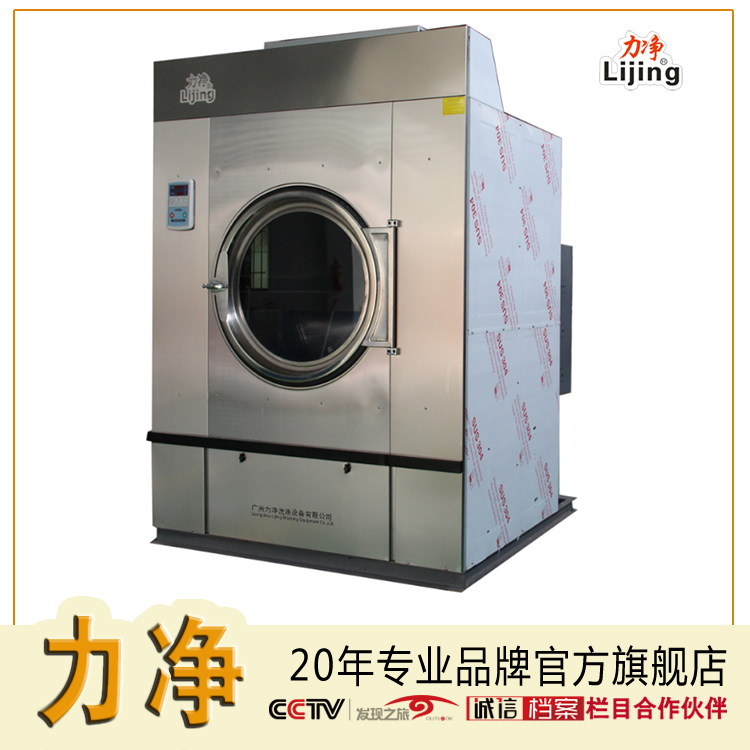

This series of industrial drying machine made of stainless steel, reduce fabric wear. Its outstanding advantages are:
1.An optimization design cooling and fan, large size heater, fast heat exchange and use of high-energy, fast heating, drying time is short.
2 High-density drum vents to ensure adequate heat through the linen, the cloth can be fully dried in the shortest possible time.
3 large diameter loading doors for easy loading and unloading clothes, door design uses overtake port design form, avoid pulling linen. Safety interlocks ensure fitted clothes door open state machine starts braking.
4 Computer control can be precisely set the time and drying temperature dryer, computer controller with touch-button design, flexible and reliable operation.
5 large plush collection network, anti-dust mesh machine, drawer-type structure, pull it out clean, large area to ensure the smooth flow of through-hole rate, large-diameter fan duct, it is not easy to plug plush, all in order ensure quick drying.
HGR series fully automatic gas dryer
Gas Dryer is our newly developed energy-saving products, ease of use, wide range of energy conservation. Its outstanding advantages are:
A high thermal efficiency, ease of use, the use of gas heating, low energy consumption, fast heat exchange and heat utilization is high.
2 High-density drum vents to ensure adequate heat through the linen, the cloth can be fully dried in the shortest possible time.
3 large diameter loading doors for easy loading and unloading clothes, door design uses overtake port design form, avoid pulling linen. Safety interlocks ensure fitted clothes door open state machine starts braking.
4 Computer control can be precisely set the time and drying temperature, computer controller with touch-button design, flexible and reliable operation.
5 large plush collection networks, anti-dust mesh machine, drawer-type structure, pull it out clean, large area to ensure the smooth flow of through-hole rate, large-diameter fan duct, it is not easy to plug plush, all in order ensure quick drying.
6 Use two V-belt gear transmission, low noise, small vibration, long working life, easy maintenance.
| 型 號 Model | HG-15 | HG-25 | HG-35 | HG-50 | HG-70 | HG-100 |
|
額定容量（KG） Rated capacity |
15 | 25 | 35 | 50 | 70 | 100 |
|
加熱方式 Heating method |
Q/D/R | S/E/G | S/E/G | S/E/G | S/E/G | S/E/G |
|
滾筒直徑（mm） Roller diameter |
Ф750 | Ф970 | Ф970 | Ф1150 | Ф1200 | Ф1450 |
|
滾筒深度（mm） Roller depth |
670 | 650 | 900 | 970 | 980 | 1220 |
|
轉筒速度（r/min) drum speed |
45 | 42 | 42 | 36 | 32 | 30 |
|
蒸汽壓力（mpa) steam pressure |
0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
|
額定電壓（V) rated voltage |
380 | 380 | 380 | 380 | 380 | 380 |
|
主電機功率（KW） motor power |
0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 2.2 |
|
風機功率（KW） fan power |
0.55 | 0.75 | 0.75 | 1.5 | 1.1 | 1.5X2 |
|
加熱功率（KW） heating power |
14 | 24 | 32 | 35 | 44 | 50 |
|
燃氣耗量（kw) gas consumption |
2 | 2.5 | 3.5 | 4.5 | 4.5 | 4.5 |
|
進蒸汽口徑（mm) steam inlet |
DN32 | DN32 | DN32 | DN32 | DN32 | DN32 |
|
疏水口徑（mm) Hydrophobic caliber |
DN25 | DN25 | DN25 | DN25 | DN50 | DN50 |
|
壓縮空氣接口口徑（mm) Compressed air interface |
Ф6 | Ф6 | Ф6 | Ф6 | Ф6 | Ф6 |
|
排風管口徑(mm) Exhaust duct diameter |
Ф160 | Ф170 | Ф170 | Ф200 | Ф275 | Ф275 |
|
外形尺寸（寬）mm Dimension (with) |
840 | 1060 | 1060 | 1240 | 1600 | 1625 |
|
外形尺寸（深）mm Dimension(depth) |
1150 | 1150 | 1450 | 1600 | 1780 | 1810 |
|
外形尺寸（高）mm Dimension (height) |
1560 | 1950 | 1950 | 2150 | 2500 | 2510 |
|
重量（KG） Weight |
380 | 450 | 520 | 650 | 1000 | 1400 |
|
型號說明：Q-蒸汽加熱，D-電加熱，R-燃氣 Model Note: Q: steam heating, D-electric heating, R-gas heating |
||||||
|
 |
 |
 |
 |
|
|
|
| E-mail to us:
| |
 |
XGQ-200FIndustrial washing machines

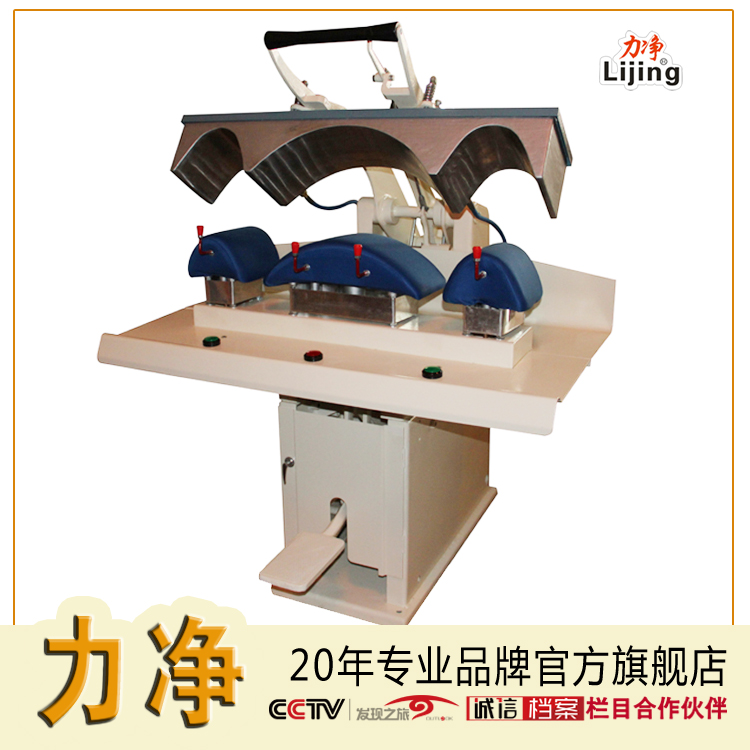

WJT-22 cuff,coller yoke press
HG-S oil dryer

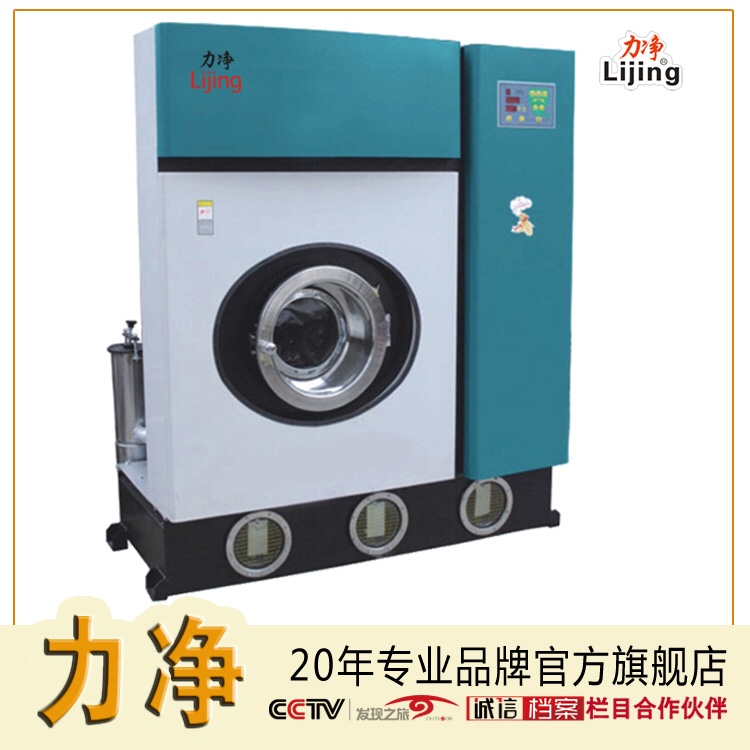

GX series micro computer automatic dry cleaning machine
